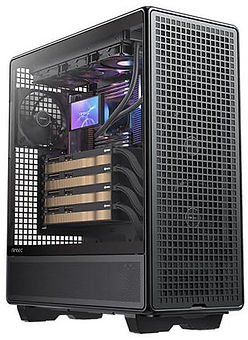

High-End AI workstation assembly based on ANTEC P20C (7 PCIE Slots) / 900 (8 PCIE Slots) Super Tower to provide: Extra High Expandability, Cost-effective, Flexible and User-oriented solutions:



​Motherboard Recommendation:

Intel(SP):

Asus Pro WS W890E-SAGE SE

Supports up to 86-core CPU ( Xeon 600); Up to 4TB ECC RDIMM DDR5; Up to 6 Single Width/ 4 Double Width/ 3 2.5 or Triple Width/

2 3.5 Width GPUs; 4x M.2 PCIe 5.0 x4 slots, 2x SlimSAS PCIe 4.0 x4 ports; VROC key is required to build NVMe RAID.

 IPMI Ready; Windows 11 Ready; Ubuntu 26.04 Ready.



Asus Pro WS W890-SAGE ​

Supports up to 86-core CPU ( Xeon 600); Up to 4TB ECC RDIMM DDR5; Up to 5 Single Width/ 4 Double Width/ 2 2.5, Triple or 3.5 Width GPUs;

​4x M.2 PCIe 5.0 x4 slots, 2x SlimSAS PCIe 4.0 x4 ports; VROC key is required to build NVMe RAID;

 IPMI Ready; Windows 11 Ready; Ubuntu 26.04 Ready.

​

Asus Pro WS W790E-SAGE SE

Support W-3500/3400/2500/2400 CPUs, up to 60 P cores CPU (W-3500); Support up to 2TB DDR5 6800(OC) ECC RDIMM; Support up to 6 Single Width/

4 Double Width/ 3 2.5 or Triple Width/ 2 3.5 Width GPUs; Support 2x M.2 PCIe 5.0 x4 slots, 2x SlimSAS PCIe 4.0 x4 slots,

VROC key is required to build NVMe RAID; IPMI Ready; Windows 11 Ready; Ubuntu 26.04 Ready.

​

Supermicro X13-SWA-TF

Support W-3500/3400/2500/2400 CPUs, up to 60 P cores CPU (W-3500); Support up to 4TB(W-3400/ W-3500)/2TB(W-2400/ W-2500) 3DS ECC RDIMM,

1TB(W-3400)/512GB(W-2400) ECC RDIMM; Support up to 6 Single Width/ 4 Double Width/ 3 2.5 or Triple Width/ 2 3.5 Width  GPUs;

Support 2x U.2 PCIe 3.0 for NVMe 2.5" SSD drives (Software RAID 0,1); Support 4x PCIe 5.0 x4 M.2 SSD (Software RAID 0,1,5,10);

IPMI Ready; Windows 11 Ready; Ubuntu 26.04 Ready.

​

Intel(DP):​

Supermicro X13DAI-T

​Support 4th/5th scalable CPU, up to 64 cores; Support up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s; Support up to 5 Single Width/ 3 Double Width/

2 Triple Width GPUs; Support 4x U.2/U.3 2.5'' NVMe SSD via 2x MCIO PCIe 5.0 x8 connectors, 2x PCIe 5.0 x4 M.2 SSD;

VROC key is required to build NVMe RAID; IPMI Ready; Windows 11 Ready; Ubuntu 26.04 Ready.

​

AMD(SP):

Asus Pro WS TRX50-SAGE WIFI A

​Support AMD Socket sTR5 for Ryzen™  Threadripper™  PRO 7000/9000 WX-Series, up to 96 cores;

Support up to 1 TB ECC RDIMM DDR5 memory; Support up to 4 Single Width/ 4 Double Width/ 2 2.5, Triple or 3.5 Width GPUs;

Supports 3x PCIe 5.0 x4 M.2 slots, 2x PCIe 4.0 x4 SlimSAS ports(Software RAID 0,1,5,10); IPMI Ready; Windows 11 Ready; Ubuntu 26.04 Ready.

​

Asus Pro WS WRX90E-SAGE SE

​Support AMD Socket sTR5 for Ryzen™  Threadripper™  PRO 7000/9000 (BIOS Version 1106) WX-Series, up to 96 cores;

Support up to 2 TB ECC RDIMM DDR5 memory; Support up to 6 Single Width/ 4 Double Width/ 3 2.5 Width/ 2 Triple or 3.5 Width GPUs;

Supports 4x PCIe 5.0 x4 M.2 slots, 2x PCIe 4.0 x4 SlimSAS ports(Software RAID 0,1,5,10); IPMI Ready; Windows 11 Ready; Ubuntu 26.04 Ready.

​

Graphic Card Recommendations:

NVIDIA:

PNY NVIDIA RTX PRO 6000 96GB GDDR7 Blackwell Dual-Fan Workstation Edition (600W, Double Width)

PNY NVIDIA RTX PRO 6000 96GB GDDR7 Blackwell Max-Q Workstation Edition (300W, Double Width)

PNY NVIDIA RTX PRO 5500 84GB GDDR7 Blackwell (600W, Double Width)

*Support 70B (84/96GB VRAM) or Lower size LLM Deployment, up to INT8 Quantization;

  Support Comfy UI 1440P 5~10 Seconds Video Clip Generation.

PNY NVIDIA RTX PRO 5000 48GB/72GB GDDR7 Blackwell (300W, Double Width)

*Support 45B/65B (48GB/72GB VRAM) or Lower size LLM Deployment, up to INT8 Quantization;

  Support Comfy UI 1080P/1440P, 5~10 Seconds Video Clip Generation

NVIDIA GeForce RTX 5090 32GB GDDR7 (No ECC Correction) Blackwell NVIDIA Founder Edition (575W, Double Width)

​ASUS ProArt GeForce RTX 5090 32GB GDDR7 (No ECC Correction) Blackwell OC Edition (575W, 2.5 Width)

*Support 30B (32GB VRAM) or Lower size LLM Deployment, up to INT8 Quantization;

  Support Comfy UI 480/720P, 5~10 Seconds Video Clip Generation

AMD:

Sapphire AI PRO AMD Radeon R9700 32GB GDDR6

*Support 30B (32GB VRAM) or Lower size LLM Deployment, up to INT8 Quantization;

  Support Comfy UI 480/720P, 5~10 Seconds Video Clip Generation, AMD ROCm Softwares are required.

  Run Nvidia RTX Pro and AMD AI Pro R9700 simultaneously on Windows 11 (Install WSL and Linux on Windows to support R9700)

​​

*Suggest the System Memory size is above the double size of the VRAM (Start from 64GB);

  ​

Power Supply Recommendations:

ASUS Pro WS 3000W Platinum / Corsair WS3000 3000W Platinum (Support up to 4x RTX Pro 6000 WS/5500/RTX 5090)

​Support ATX3.1; 4x Native 12V-2x6 Connectors; AC Input: 200~240V Only; Max Load: 12V+ 250A; Protection: OPP/OVP/UVP/SCP/OCP/OTP

ASUS Pro WS 2200W Platinum / Seasonic PRIME PX-2200 / Super Flower Leadex 2200W Titanium

 (Support up to 2x RTX Pro 6000 WS/5500 /RTX 5090 Natively)

Support ATX3.1; 2x Native 12V-2x6 Connectors; AC Input: 200~240V Only; Max Load: 12V+ 183.3A; Protection: OPP/OVP/UVP/SCP/OCP/OTP

Super Flower Leadex 1700W Titanium

Support ATX3.1; 2x Native 12V-2x6 Connectors; AC Input: 115~240V; Max Load: 12V+ 141.6A; Protection: OPP/OVP/UVP/SCP/OCP/OTP

Seasonic PRIME PX-1600 1600W Platinum

Support ATX3.1; 2x Native 12V-2x6 Connectors; AC Input: 115~240V; Max Load: 12V+ 133.3A; Protection: OPP/OVP/UVP/SCP/OCP/OTP

​
